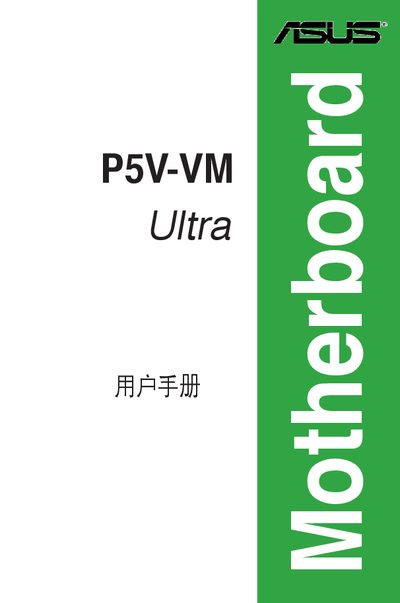

ASUS P5V-VM Ultra User Manual

This document is the user manual for the ASUS computer P5V-VM Ultra motherboard, which describes the features and characteristics of the product.

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: English
Pages: 74
File format: PDF
File size: 2.4 MB
Published: 27 September, 2011
Updated: 28 September, 2023
Model: P5V-VM
MD5 checksum: 383127E0D9C63636012806DC9BEF39AC
PDF: ASUS P5V-VM Ultra User Manual PDF

About this manual

This manual guides users through the safe installation and configuration of the ASUS P5V-VM Ultra motherboard. It includes safety precautions, a detailed parts list, and step‑by‑step instructions for installing the CPU, memory, expansion cards, and connecting internal and external connectors.

The document also covers BIOS configuration options, power‑management settings, and the software utilities bundled with the board, such as ASUS PC Probe II, ASUS Update, and driver installation procedures.

What's inside

Safety Information
Product Specifications
Installation Guide
CPU Installation
Memory Installation
Expansion Slots
BIOS Setup
Power Management
Software Support

Specifications

CPU socket	LGA775
Chipset	Northbridge VIA P4M890, Southbridge VIA VT8237A
Memory slots	2 x 240‑pin DDR2 DIMM, up to 2 GB
SATA ports	2 x Serial ATA with RAID 0, RAID 1, JBOD
LAN controller	Realtek RTL8201CL 10/100M
USB ports	8 USB 2.0 ports (4 rear, 4 via headers)

Frequently asked questions

What processors are compatible with the P5V-VM Ultra motherboard?

The board supports LGA775 processors including Intel Core 2, Pentium D, Pentium 4 and Celeron D models.

How many USB 2.0 ports does the motherboard provide?

It provides up to eight USB 2.0 ports – four on the rear panel and four available through internal headers.
