The RBSS speed sensor is used for belt weighers, it provides a signal to a counter and calculates the flow of material passing through the belt conveyor. The RBSS monitors the speed of the belt conveyor belt and transmits the output signal via a cable connection to the counter. The RBSS is easy to install compactly with the belt weigher components and provides a signal generated by a rotating sensor wheel on the return belt. The crossbeam is positioned between the long support beams and installed between the front and rear rollers of the return belt. The self-weight ensures the position of the wheel in the middle of the return belt. A chain wheel with 60 teeth is driven by the wheel, and magnetic sensors emit pulses. The RBSS output can be used on any belt weigher counter.

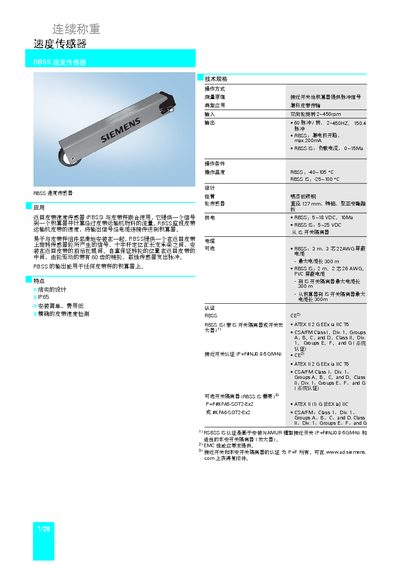

This guide describes the RBSS speed return sensor used together with belt weighers to provide a belt speed signal to a calculator for material flow measurement. It explains the sensor’s mounting options, wiring, and integration with belt scale systems.
Key features include a robust IP65 design, ATEX and CE certifications, 60 pulses per revolution output, and a wide operating temperature range. Technical specifications, cable options, and ordering information are also provided. This manual is written in Chinese.
| Output pulses per revolution | 60 pulses/rev, 2~450 Hz, 150.4 pulses |
|---|---|
| Supply voltage (RBSS) | 5~18 VDC, 10 mA |
| Supply voltage (RBSS IS) | 5~25 VDC |
| Operating temperature (RBSS) | -40 °C to 105 °C |
| Operating temperature (RBSS IS) | -25 °C to 100 °C |
| Maximum cable length | 300 m |
| Safety certifications | ATEX II 2 G, EEx ia IIC, CE |
The sensor outputs 60 pulses per revolution, corresponding to 2 ~ 450 Hz and 150.4 pulses.
The RBSS version needs 5 to 18 VDC at 10 mA, while the RBSS IS version requires 5 to 25 VDC.
The RBSS operates from –40 °C to 105 °C, and the RBSS IS version from –25 °C to 100 °C.
The maximum cable length is 300 m.
