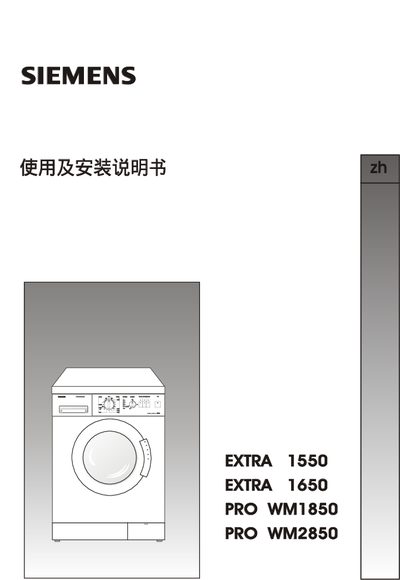

This is the user manual for Siemens washing machine EXTRA 1550 EXTRA 1650 PRO WM1850 PRO WM2850.
This manual provides step‑by‑step installation instructions for the Siemens EXTRA 1550, EXTRA 1650, PRO WM1850 and PRO WM2850 washing machines, including water‑inlet connection, grounding, and transport‑bolt removal. Safety warnings and environmental disposal guidelines are highlighted to ensure proper handling.
The guide also details everyday operation: program selection, detergent dosing, special cycles, cleaning, and troubleshooting. Technical specifications such as voltage, power, capacity and water‑pressure limits are listed, and a section explains how to adjust buzzer volume and enable or disable function‑key sound feedback. This manual is written in Chinese.
| Rated Voltage | 220 V~ |
|---|---|
| Washing Power | 200 W |
| Spin Power | 460 W |
| Washing Capacity | 5.2 kg |
| Heating Power | 1800 W |
| Maximum Power | 2000 W |
| Water‑Pressure Range | 0.1–1 MPa |
| Maximum Current | 10 A |
| IP Rating | IPX4 |
Only cold tap water may be used for the washing machine.
Turn the power on, set the program selector to “Stop”, then rotate the selector to a program while holding the “Strong Stain Removal” key; the buzzer volume will cycle from maximum to mute, allowing you to release the key at the desired level.
The maximum load for cotton or colored fabrics is 5.20 kg.
Close the main water valve, open all taps, attach the supplied washing‑machine specific faucet to the water pipe, tighten with a plastic seal, then open the faucet and check for leaks before use.
