This product is a paperless recorder that can be used to monitor and record various input signals from industrial sites, such as temperature signals from thermocouples and RTDs, flow signals from flow meters, and pressure signals from pressure transmitters. Through high-performance microprocessor data processing, on the one hand, it is displayed on a high-resolution LCD screen in a variety of graphic formats, on the other hand, the collected data is stored in the internal memory or transmitted to the上位机through the communication interface.

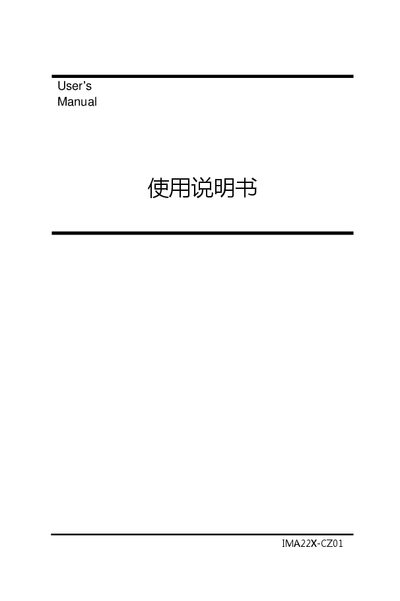

This manual covers the IMA22X-CZ01 paperless recorder, describing its hardware structure, installation guidelines, and key functions such as analog signal input, data logging, alarm handling, printing, and communication settings. Detailed chapters guide users through system configuration, signal setup, historical data review, and backup procedures.
Additional sections explain specifications, environmental requirements, and safety precautions, ensuring proper use and maintenance of the device in industrial environments. This manual is written in Chinese.
| Instrument size | 160mm*80mm |
|---|---|
| Display type and resolution | Monochrome LCD, 320*200 pixels |
| Universal signal inputs | 4 inputs (mA, V, mV, TC, RTD) |
| Thermocouple cold‑junction compensation | Supported |
| Signal input accuracy | 0.296 FS |
| Recording interval and retention | 1 min interval, up to 180 days, 10‑year retention |
| Alarm and relay outputs | Channel high/low limit alarm, 4 relay contacts |
| Current and power outputs | 1 × 4‑20 mA, 1 × 24 VDC |
| USB interface | USB 2.0 for data export |
| Communication interfaces | RS232C/RS485, MedbusRTU protocol |
| Configuration backup | File backup and export supported |
It provides four universal signal inputs supporting mA, V, mV, thermocouple (TC) and RTD signals.
The device includes standard RS232C and RS485 ports using the MedbusRTU protocol.
Data can be recorded every minute and stored for up to 180 days, with a ten‑year retention guarantee.
