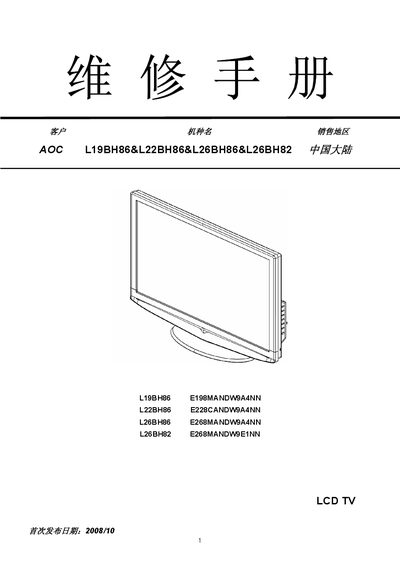

This is a maintenance manual for AOC L19BH86&L22BH86&L26BH86&L26BH82 LCD TV
This manual provides safety warnings, technical specifications, and detailed repair instructions for AOC LCD TV models L19BH86, L22BH86, L26BH86 and L26BH82. It includes guidance on proper grounding, handling of electrical connections, and required accessories.
The document also describes operation of the control panel, input source selection, installation dimensions, and a bill of materials (BOM) for replacement parts. Users are instructed to follow the step‑by‑step procedures to diagnose and fix common faults while observing the safety precautions. This manual is written in Chinese.
| Screen size | 19" / 22" / 26" |
|---|---|
| Power consumption | 65W (19"), 75W (22"), 150W (26") |
| Input voltage | AC100V‑240V 50/60Hz |
| Operating temperature | +5°C to +35°C |
| Storage temperature | -25°C to +60°C |
| Dimensions (with stand, 22" model) | 512 mm × 400 mm × 144 mm |
The 19" model consumes 65 W, the 22" model consumes 75 W, and the 26" model consumes 150 W.
The TV with stand measures 512 mm × 400 mm × 144 mm.
