Toshiba digital recorder is a digital recorder with a large-capacity hard disk drive. It adopts the image compression extension method (WAVELET method), which can achieve high-quality recording and long-time recording with a horizontal resolution of more than 450 lines.

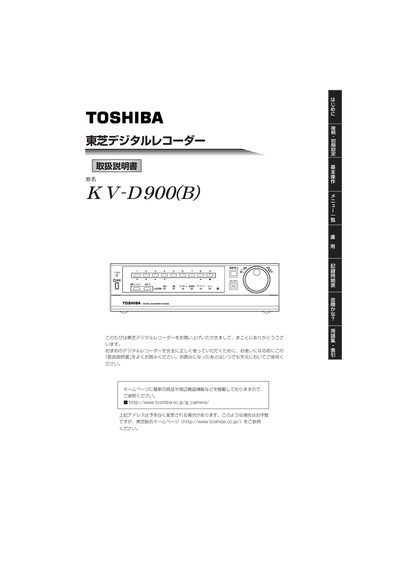

This manual provides step‑by‑step instructions for installing, configuring, and operating the Toshiba KV-D900(B) digital video recorder. It explains hardware connections, camera multiplexing, recording options, and advanced features such as motion detection and password locks.
Safety precautions, troubleshooting tips, and detailed descriptions of the front and rear panels are included to help users maintain reliable operation in surveillance environments. This manual is written in Japanese.
| Camera inputs | 9 asynchronous inputs |
|---|---|
| Split‑screen display modes | 1, 4, 9 divisions |
| Recording interval steps | 18 steps from 1/30 s per frame to B s per frame |
| Maximum continuous frames | 32.04 million frames |
| Power supply voltage | AC 100 V |
The recorder supports up to 9 asynchronous camera inputs.
It provides a three‑level operation password lock and a separate HDD data‑erase password lock.
Yes, it offers split‑screen modes of 1, 4, or 9 divisions and sequential display.
