TLP127 is a high noise, high isolation optical coupler produced by Toshiba Corporation. It uses a small, thin mini flat package and is suitable for applications such as electronic computer I/O interfaces, programmable controllers, DC output modules, electronic button telephone systems, and telephone exchanges.
The TLP127 is a miniature flat‑package optocoupler that combines a GaAs infrared LED with a phototransistor for high noise immunity and high isolation. It is suited for programmable controller output modules, electronic telephone systems, and other 100 VDO applications.

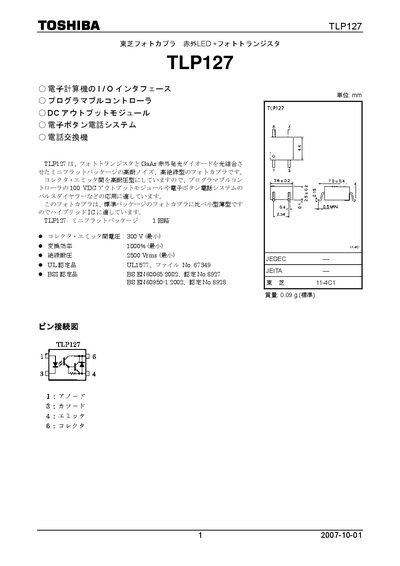

The document provides absolute maximum ratings, detailed electrical characteristics, switching performance data, and handling guidelines, including UL and BSI certifications and recommended operating conditions. This manual is written in Japanese.
| Collector‑Emitter Voltage (VcEo) | 300 V (min) |
|---|---|
| Isolation Voltage | 2500 Vrms (min) |
| Forward Current (IF) | 50 mA |
| Reverse Voltage (VR) | 5 V |
| Phototransistor Power Dissipation (Pc) | 150 mW |
| Operating Temperature Range | -55 °C to 125 °C |
| Mass | 0.09 g (typical) |
| UL Certification | UL1577 |
The TLP127 is rated for a minimum collector‑emitter voltage of 300 V.
It provides at least 2500 Vrms isolation voltage.
The device is specified for operation from –55 °C to 125 °C.
The forward current (IF) is rated at 50 mA.
