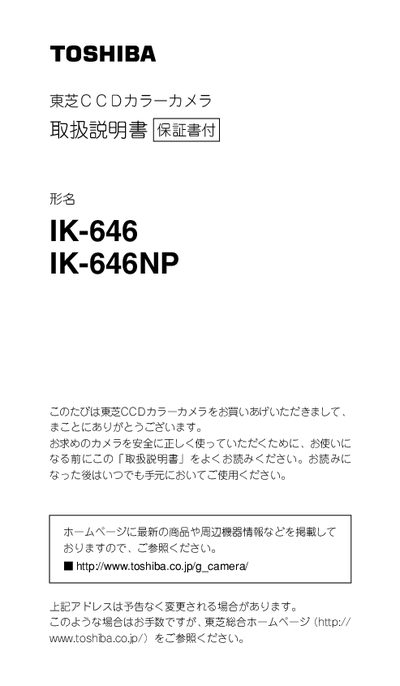

Toshiba CCD color camera instruction manual, introduces the safe use, use and installation precautions, product composition, names and functions of each part, connection and operation methods, lens adjustment methods, backlight compensation, external synchronization control, white balance, audio output, fault troubleshooting, warranty and repair services, product specifications and external appearance diagrams
This manual explains how to safely install and operate the Toshiba IK-646 and IK-646NP CCD color cameras. It includes safety precautions, proper handling, connection methods, and cleaning instructions to ensure reliable performance.
The document also details the camera’s connectors, power requirements, and warranty/repair procedures, helping users maintain the device and obtain service when needed. This manual is written in Japanese.
| Power Supply | AC100V mains |
|---|---|
| Video Output Connector | BNC |
| Monitor Output Connector | BNC |
| External Sync Connector | BNC |
| Audio Output Switch | MIC switch (ON for audio overlay) |
| NP Model Power Adapter | External power adapter required |
Use the BNC EXT. SYNC connector on the camera.
The camera is powered from an AC100 V mains outlet.
