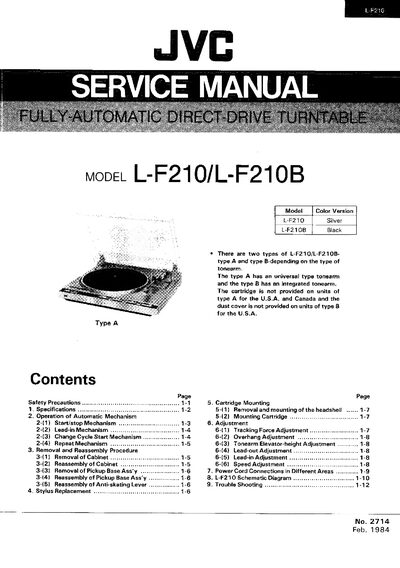

This is the service manual for the JVC L-F210/L-F210B turntable.
This service manual provides detailed safety precautions, specifications, and step‑by‑step procedures for servicing the JVC L‑F210 and L‑F210B turntables. It covers the automatic mechanism operation, cartridge mounting, tonearm adjustments, power‑cord wiring for various regions, and a complete schematic diagram.
The document also includes a troubleshooting guide, motor RPM adjustment instructions, and an accessories list with part numbers for replacement components.
| Platter Diameter | 12‑inch (30.8 cm) |
|---|---|
| Frequency Response | 10 Hz to 22 kHz |
| Load Resistance | 47 kΩ |
| Separation | 25 dB (1 kHz) |
| Tracking Ability (Type A) | 70 wm at 315 Hz |
| Tracking Ability (Type B) | 80 wm at 315 Hz |
