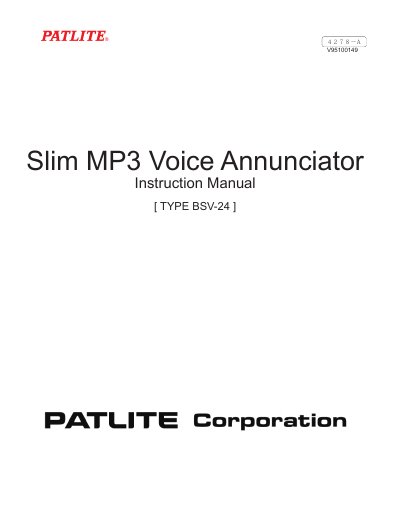

Patlite BSV-24 Slim MP3 Voice Annunciator Instruction Manual

This document is the instruction manual for the Patlite Slim Model MP3 Voice Annunciator

Brand: Patlite
Document type: User Manual
Language: English
Pages: 29
File format: PDF
File size: 4 MB
Published: 16 October, 2023
Updated: 16 October, 2023
Model: BSV-24
MD5 checksum: BFD6750E222D759E9813F3322B1E7538
PDF: Patlite BSV-24 Slim MP3 Voice Annunciator Instruction Manual PDF

About this manual

The Patlite BSV-24 is a slim-sized MP3 voice annunciator designed primarily for factory automation (FA) applications. It features a thin design with a thickness of 19.9mm, allowing installation in space-saving apparatuses. The device supports high-quality sound playback using the MPEG1-Audio Layer III (MP3) protocol and allows registered voice messages to be rewritten freely via an optional SD card.

What's inside

Product Summary
Safety Precautions
Model Number Configuration
Part Names and Outside Appearance
Installation
Wiring
Controlling The Volume
Various Functions and Playback Methods
SD Card Operation
Specifications

Specifications

Thickness	19.9mm
Max Registered Messages	15 messages
Standard MP3 Bit Rate	64 kbit/s
Recommended SD Card Model	SDV-128P
Rated Voltage Range	12 to 24 VDC

Frequently asked questions

What is the standard bit rate for MP3 files used with this device?

The standard rate given for the MP3 file is a bit rate of 64 kbit/s.

Which SD card model is recommended for this annunciator?

The optional SDV-128P should be used for the SD card.

How many voice messages can be registered on the device?

A maximum of 15 messages can be registered on the device.
