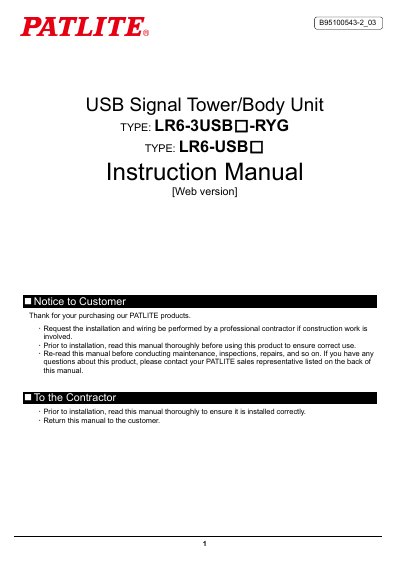

This manual describes how to use USB signal tower/body unit products, including installation, connection, operation, etc.
The PATLITE LR6-3USB□-RYG and LR6-USB□ are signal towers controlled via a host PC through a USB connection (HID class). The system consists of a body unit and an LED unit, featuring red, yellow, and green LEDs as well as a buzzer with multiple sound patterns. These units are designed for indoor use with an IP65 protection rating.
| Rated Voltage | 5V DC (USB bus power) |
|---|---|
| Operating Temperature | -20°C to +50°C |
| Protection Rating | IP65 (IEC 60529), NEMA TYPE 4X,13 |
| Communication Method | USB2.0 Full Speed |
| Supported Operating Systems | Windows 7, Windows 8, Windows 8.1, Windows 10 |
| Mass (LR6-USB□) | 140g |
A USB signal tower is a signal tower that can be controlled from a host PC via a USB connection (HID class).
No, the mounting location must be indoors unless using specific pole or wall brackets.
