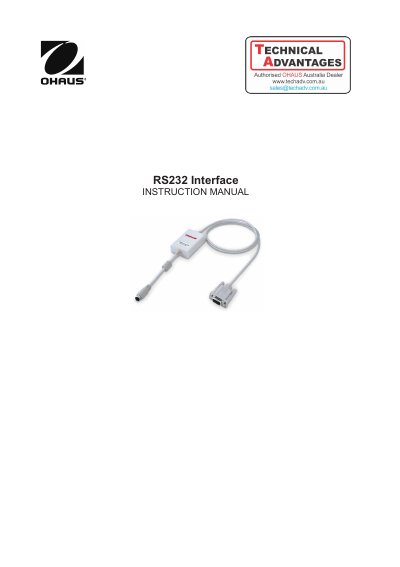

This manual describes the use of the OHAUS RS232 Interface.
This instruction manual covers the OHAUS RS232 Interface Kit, designed for use with Scout STX, SPX, SKX, SUX, and PJX series products. It details the physical installation of the module on the mini DIN port located at the rear of the balance, ensuring the device is powered off during the process.
The document provides comprehensive setup procedures for different balance models, including STX, SPX/SKX/SJX, and PJX series. It explains how to configure communication parameters such as baud rate, data bits, parity, and handshake methods to match connected printers or computers. Additionally, it describes the various print settings available to control data transmission and output formatting.
| Connector Type | 9 pin Sub-D female |
|---|---|
| Active Pins | Pin 2 = TXD, Pin 3 = RXD, Pin 5 = Ground |
| Max. Cable Length | 15m |
| Transmission Mode | Bit-serial, asynchronous |
| Transmission Code | ASCII |
| Operating Mode | Full duplex |
The interface is for use with OHAUS Scout STX, SPX, SKX, SUX series and PJX series products.
The interface is preset to communicate using 9600 baud, 8 bit, no parity, and no handshake.
Supported baud rates include 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps.
Available methods include None, XON/XOFF, and Hardware (RTS/CTS) for PJX balances.
