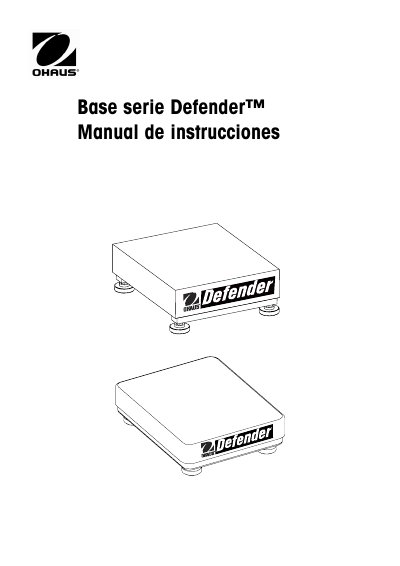

Ohaus Defender ES-1 Base Series Installation and Maintenance Manual

This manual provides installation and maintenance instructions for the Ohaus Defender Series Platform Scale.

Brand: OHAUS
Category: Industrial Robot
Document type: User Manual
Language: Spanish
Pages: 14
File format: PDF
File size: 759 KB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: C2FF9439E303CCF870F8526BAE568E99
PDF: Ohaus Defender ES-1 Base Series Installation and Maintenance Manual PDF

About this manual

This manual describes installation and maintenance instructions for the Ohaus Defender Base Series. It covers safety precautions, unpacking, assembly of the weighing pan, and wiring connections for various base models (DxxxHx, DxxxQx, DxxxRx, DxxxWx). It also includes troubleshooting tips for common operational difficulties. This manual is written in Spanish.

What's inside

Introducción
Precauciones de Seguridad
Instalación
Ensamblaje
Conexiones del cableado
Selección del lugar de instalación
Mantenimiento
Identificación y solución de problemas
Datos Técnicos

Specifications

Operating Temperature	-10ºC to +40 ºC
Relative Humidity	10% to 90%, non-condensing
Altitude	Up to 2,000 m
Cell Protection	IP67
Excitation Voltage	5-15V DC/AC
Nominal Cell Tension	2mV/V
Cell Cable Length	2 m

Frequently asked questions

What safety precautions should be taken when operating the base?

Ensure the load cell cable does not pose a tripping hazard and do not operate the base in hazardous or unstable environments.

How should the base be lifted?

Always lift the base from the lower frame; never lift it by the upper frame.

What causes operational difficulties?

Common causes include loose or incorrect cable connections, obstructions to the base frame, unstable environments, or incorrect indicator calibration.
