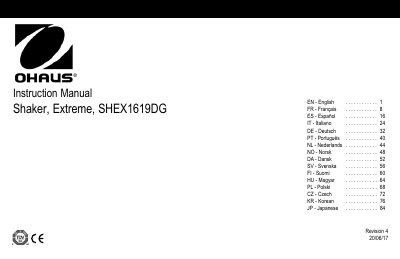

This is an instruction manual that describes how to use, install and maintain the SHEX1619DG shaker.
This manual provides instructions for the Ohaus Extreme Shaker (Model SHEX1619DG), a laboratory instrument designed for general use. It details the package contents, installation requirements, and intended operating environment, including temperature and humidity limits. The document emphasizes safety precautions, such as avoiding hazardous atmospheres and ensuring proper grounding, before operation.
| Orbit | 19mm (0.75") |
|---|---|
| Speed Range | 15 to 500 rpm |
| Capacity | ~ 35lbs (16kg) at 75rpm |
| Timer Range | 1 second to 160 hours |
| Temperature (shaker) | -10 to 60°C (14 to 140°F) |
| Overall dimensions | 11.5 x 13.9 x 5.8" (29.2 x 35.3 x 14.7cm) |
Above 100 rpm, the accuracy is ± 1% of set speed; below 100 rpm, it is ± 1 rpm.
At least every three months, you should unplug the unit, remove dirt, and check accessible items for tightness.
No, the unit is not designed to start after being in a cold room environment; it should be brought to room temperature first.
