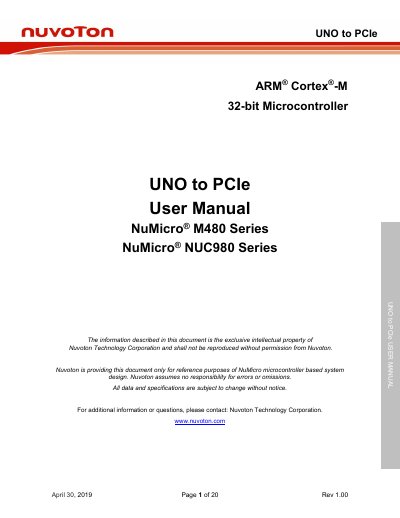

This is a user manual of UNO to PCIe Board by Nuvoton Technology Corporation.
The UNO to PCIe board is a daughter board designed for use with the NuMaker-IoT-M487 and NK-980IoT development boards. It supports LTE connectivity when combined with Quectel EC21, Quectel BG96, or ZTE ME3630 module boards. The board can also operate independently via a USB 2.0 connection.
| Microcontroller | Nuvoton M487JIDAE MCU |
|---|---|
| Processor Core | Arm Cortex-M4 core |
| Processor Speed | up to 300 MHz |
| Memory | 64MB DDR2 memory |
| Interface | mini PCIe |
| Compatibility | Arduino UNO |
It is a daughter board for both the NuMaker-IoT-M487 board and the NK-980IoT board.
Yes, the board can work independently by USB 2.0.
It needs to be combined with the Quectel EC21 module board, Quectel BG96 module, and ZTE ME3630 module board.
