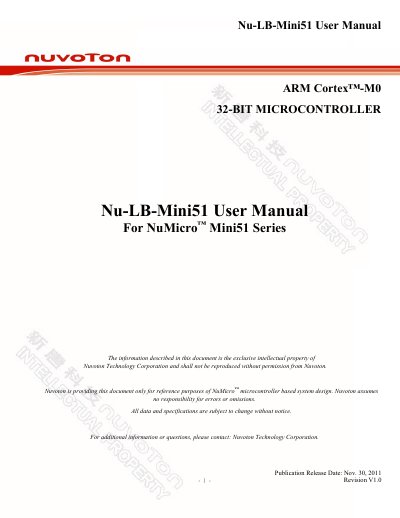

This document introduces the functional block and pin definition of Nu-LB-Mini51, as well as how to use Nu-LB-Mini51 on Keil and IAR IDE
The Nu-LB-Mini51 is a specific development tool designed for the NuMicro Mini51 series. It integrates an ARM Cortex-M0 microcontroller (Mini54LAN) with rich functional blocks, including a 128x64 Dot Matrix LCD, RGB LED, 8 LEDs, and an RS232 interface, allowing users to easily display information, store data, and interact with humans.
The board includes an integrated ICE controller called Nu-Link-Me, which connects the PC's USB port to the target system via a Serial Wired Debug Port. This eliminates the need for additional debugging equipment when using Keil uVision or IAR Embedded Workbench IDEs to program and debug embedded programs.
| Microcontroller | ARM Cortex-M0 |
|---|---|
| LCD Display | 128x64 Dot Matrix |
| LEDs | RGB LED and 8 LEDs |
| Interface | RS232 |
| Debug Controller | Nu-Link-Me |
The board supports Keil uVision IDE and IAR Embedded Workbench for programming and debugging.
No, the board integrates the Nu-Link-Me Debug Adaptor, so no other additional ICE or debug equipment is needed.
It is a development tool used to learn how to display information, store data, communicate with a PC, and interact with humans using Mini51 series features.
