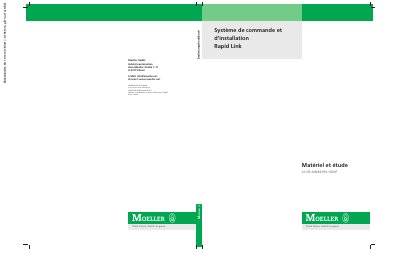

Moeller Rapid Link Control and Installation System User Manual

About this manual

This document is a comprehensive guide for the study, installation, and operation of the Moeller Rapid Link control and installation system. It provides detailed instructions on configuring the data and power buses, mounting functional modules, and connecting the RA-IN head station.

The manual emphasizes strict adherence to safety regulations regarding high voltage, static electricity discharge, and emergency stop devices. It outlines specific procedures for installing flexible bus bars (RA-C1) and round cable derivations (RA-C2), as well as using locking clamps like SET-M-LOCK. This manual is written in French.

What's inside

• Remarques générales
• Système Rapid Link
• Montage des modules fonctionnels
• Montage du bus de données
• Station de tête RA-IN
• Interface PROFIBUS-DP
• AS-Interface
• Raccordement de l'alimentation

Specifications

Frequently asked questions

Who is authorized to perform work on this device?

Interventions must be carried out only by qualified personnel according to EN 50110-1/-2.

What safety measure is required before touching the device?

You must discharge static electricity you are carrying before touching the device.
