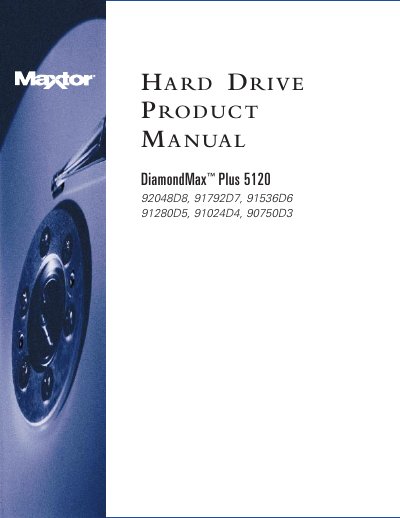

Maxtor DiamondMax Plus 5120 Hard Drive Product Manual

This is a hard drive product manual, which introduces Maxtor DiamondMax™ Plus 5120 AT hard disk technical information, including installation and use.

Brand: Maxtor
Category: Hard disk
Document type: User Manual
Language: English
Pages: 71
File format: PDF
File size: 879 KB
Published: 16 October, 2023
Updated: 16 October, 2023
Model: DiamondMax Plus 5120
MD5 checksum: 271055B1945A7B5E729DB551EE70F920
PDF: Maxtor DiamondMax Plus 5120 Hard Drive Product Manual PDF

About this manual

This document serves as a technical reference manual for the Maxtor DiamondMax Plus 5120 series of hard disk drives. It is specifically intended for OEM engineers and systems integrators, providing detailed information on installation, interface specifications, and host software interaction. The manual covers the full range of models in the series, including capacities of 90750D3 through 92048D8.

What's inside

Introduction
Product Description
Product Specifications
Handling and Installation
AT Interface Description
Host Software Interface
Interface Commands
Service and Support

Specifications

RPM	7,200 RPM
Interface	ATA
Models	92048D8, 91792D7, 91536D6, 91280D5, 91024D4, 90750D3
Copyright Year	1999

Frequently asked questions

Who is this manual intended for?

This manual provides technical information for OEM engineers and systems integrators regarding the installation and use of DiamondMax hard drives.

Can I repair the drive myself?

No, drive repair should be performed only at an authorized repair center.
