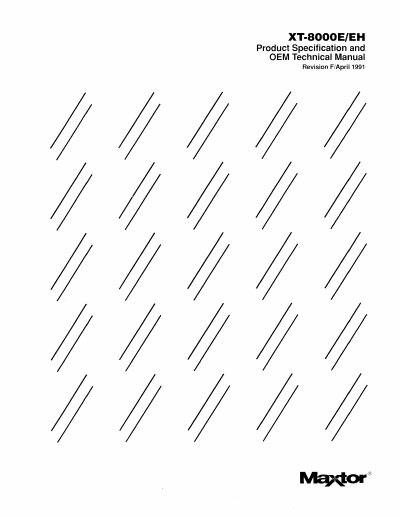

XT 8000E / EH Product Specification and OEM Technical Manual
This document serves as the Product Specification and OEM Technical Manual for the Maxtor XT-8000E/EH family of disk drives. It provides comprehensive technical data including environmental limits, physical dimensions, and shipping requirements. The manual is intended for original equipment manufacturers and technical support regarding drive setup and operation.
| Operating Temperature | 50° F to 122° F (10° C to 50° C) |
|---|---|
| Height | 3.25 in. (82.55 mm) |
| Width | 5.75 in. (146.05 mm) |
| Depth | 8.20 in. (208.28 mm) |
| Weight | 7.1 Ib (3.2 kg) |
| Rotational Speed | 3,600 rpm |
| Data Heads | 8 |
| Disks | 5 |
Maxtor warrants the XT-8000E/EH Family of disk drives against defects in materials and workmanship for a period of two years for the original purchaser.
To avoid condensation damage, let the drive acclimate to room temperature before removing it from its protective bag.
Forced air cooling of approximately 500 linear feet per minute across the PCB is recommended.
