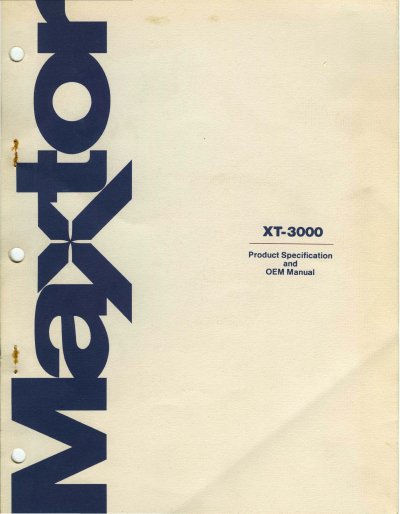

Maxtor XT-3000 Hard Drive Product Specification and OEM Manual

XT-3000 is a hard disk product released by MAXTOR company

Brand: Maxtor
Category: Hard disk
Document type: Service Manual
Language: English
Pages: 150
File format: PDF
File size: 8.8 MB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: 7D41F28A6C2F64CFC2DDFA4BFA957B73
PDF: Maxtor XT-3000 Hard Drive Product Specification and OEM Manual PDF

About this manual

The document serves as a comprehensive specification and OEM guide for the Maxtor XT-3000 hard disk drive. It details key hardware features including the SCSI controller interface, drive mechanism, air filtration system, and positioning mechanisms. The manual also covers the functional characteristics of power sequencing and electrical interfaces.

What's inside

Introduction
Key Drive Features
Command Set Summary
Physical Specifications
Performance Specifications
Functional Characteristics
SCSI Host Interface Protocol
XT-3000 Buffering Scheme
SCSI Commands/Definitions/Operations
Appendix A: SCSI Command Examples

Specifications

MTBF	20,000 POH
Component Design Life	5 years
Height	3.25 inches

Frequently asked questions

What is the maximum operating temperature?

The maximum operating ambient temperature is 113 degrees Fahrenheit.

What are the DC power requirements?

The drive requires +12V ± 5% and +5V ± 5% DC power.

Download PDF (8.8 MB)
