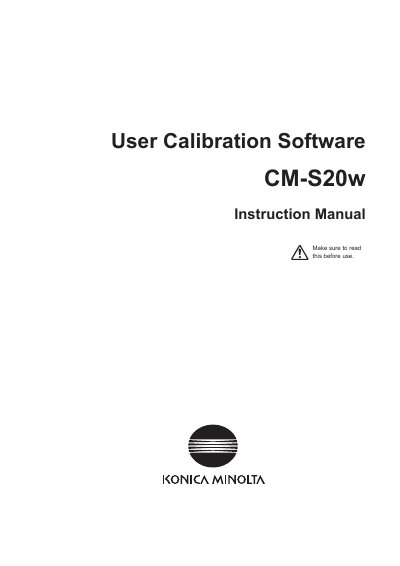

Konica Minolta CM-S20w User Calibration Software Instruction Manual

This document is the user manual of Konica Minolta User Calibration Software CM-S20w, which introduces the features and usage of the software.

Brand: Konica Minolta
Document type: User Manual
Language: English
Pages: 22
File format: PDF
File size: 1.2 MB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: F23EEA657B40CE7FDB5ECFEBFBC2CD2F
PDF: Konica Minolta CM-S20w User Calibration Software Instruction Manual PDF

About this manual

The Konica Minolta CM-S20w is a user calibration software designed specifically for the CM-512m3A spectrophotometer (and previously the CM-512m8). Its primary function is to minimize inter-instrument agreement when performing color management with multiple colorimeters. The software calculates correction coefficients between a master instrument and a working instrument, which are then written to the device to ensure more precise data.

What's inside

Safety Precautions
Introduction
Operation Flow
Starting up the Software
Communication settings
Field of view and light source settings
Checking measurement stability
Checking inter-instrument agreement
Calculating correction coefficient

Specifications

Compatible Master Instrument	CM-512m3A or CM-512m8
Compatible Working Instrument	CM-512m3A
Field of view	10°
Light source	D65
Maximum correction colors	30

Frequently asked questions

What is the default threshold for measurement stability?

The default value is 0.2.

When is user calibration considered necessary?

It is necessary if the inter-instrument agreement AE* is greater than a threshold value of 0.5.

Which operating systems are supported?

The software supports Windows XP Professional, Windows 7 Professional, and Windows 8 Pro.
