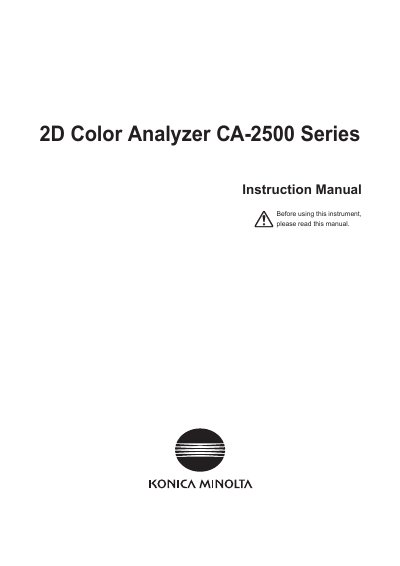

Konica Minolta CA-2500 Series 2D Color Analyzer Instruction Manual

2D Color Analyzer CA-2500 Series Instruction Manual

Brand: Konica Minolta
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 34
File format: PDF
File size: 1.7 MB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: 093E826E5914E1865BB2D721EE69F118
PDF: Konica Minolta CA-2500 Series 2D Color Analyzer Instruction Manual PDF

About this manual

This manual provides instructions for the Konica Minolta CA-2500 Series 2D Color Analyzer, an instrument designed to measure luminance and color unevenness on display units, projectors, backlights, and car instrument panels. It covers safety warnings, operating environment requirements, and lens care.

What's inside

Safety Warnings and Cautions
Introduction
Operating Environment
Storage Conditions
Lens and Filter Care
Measurement Principles
Operation
Error Check
Specifications
Accessories

Specifications

Measurement Target	display unit or projector, backlight and car instrument panel
Operating Voltage	100-240 V~ 50/60 Hz
Operating Temperature	10°C and 30°C
Operating Humidity	70% or less
Maximum Altitude	2000 meters
Storage Temperature	0°C and 30°C

Frequently asked questions

What is the CA-2500 Series used for?

It measures unevenness of luminance and color on display units, projectors, backlights, and car instrument panels.

Can the instrument be used outdoors?

No, it should not be used outdoors because the standard AC adapter is designed for indoor use.

What is the recommended storage temperature?

The instrument should be stored between 0°C and 30°C with relative humidity of 70% or less.
