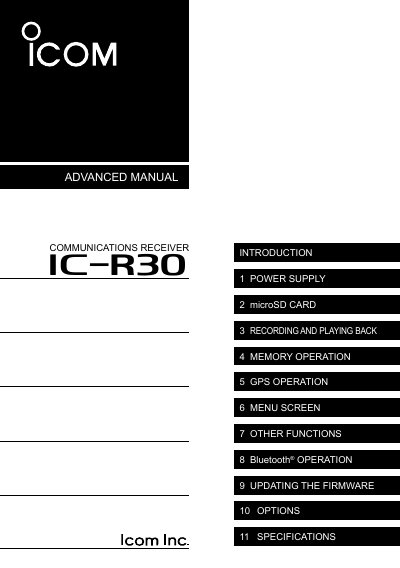

ICOM iR30 user manual

This document is the ICOM iR30 user manual

Brand: ICOM
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 203
File format: PDF
File size: 2 MB
Published: 15 October, 2023
Updated: 15 October, 2023
Model: IC-R30
MD5 checksum: CE6C5292734C3669D7F13A2A080365B4
PDF: ICOM iR30 user manual PDF

About this manual

This document serves as the Advanced Manual for the Icom IC-R30 communications receiver. It complements the Basic Manual by providing detailed instructions for advanced operations such as battery management, microSD card usage, audio recording and playback, memory operations, GPS functionality, menu screen navigation, Bluetooth operation, and firmware updating. It also covers available options and technical specifications.

What's inside

Battery operation
Using a microSD card
Recording the received audio
Memory operation
GPS operation
Menu screen
Other functions
Bluetooth operation
Updating the firmware
Specifications

Specifications

Bluetooth Version	Bluetooth Ver.4.2
Bluetooth Transmission Power	Class 2
Bluetooth Profiles	HFP, HSP, SPP, GATT (Serial) over LE
Maximum Bluetooth Pairing Devices	7 devices
Default Bluetooth Device Name	ICOM BT-003
Bluetooth Pass Key	0000
Charger Input Voltage	DC 12~16V
Charger Operating Temperature	15°C ~ 40°C
Battery Type	Li-ion battery
Battery Voltage	3.6 V DC
Battery Capacity	3120 mA (minimum), 3280 mA (typical)
Battery Operating Temperature	-20°C ~ +60°C

Frequently asked questions

What is the default name for the Bluetooth device?

The default device name is "ICOM BT-003".

What is the pass key for Bluetooth pairing?

The pass key is "0000".

What is the maximum number of Bluetooth devices that can be paired?

The maximum number of pairing devices is 7.

What is the input voltage for the BC-223 charger?

The input voltage is DC 12 to 16V.
