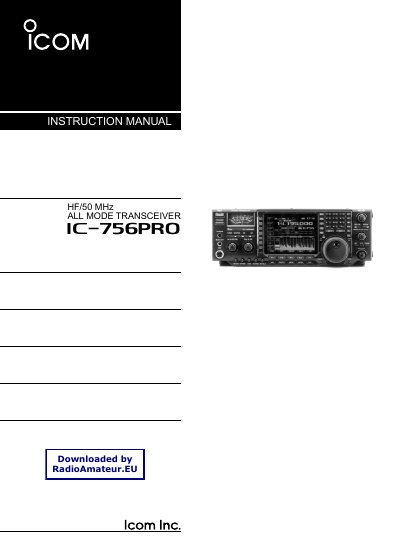

The file is the operating manual for i756pro
This document is the official instruction manual for the Icom IC-756PRO, an HF/50 MHz all-mode transceiver. It provides detailed guidance on safety precautions, panel descriptions, and initial setup procedures including unpacking and grounding.
The guide covers comprehensive operating instructions for receive and transmit functions such as mode selection, noise reduction, dualwatch, and split frequency operation. It also details memory channel programming, scan operations, clock settings, and the installation of optional accessories like the UT-102 voice synthesizer.
| RF Output Power (AM) | 5 W to 40 W |
|---|---|
| RF Output Power (Other Modes) | minimum (5 W) to maximum (100 W) |
| Headphone Output | 5 mW with an 8 ohm load |
Applying AC to the DC13.8V jack could cause a fire or ruin the transceiver.
No, only Icom microphones should be used as others may damage the transceiver.
The unit should be kept between -10°C (+14°F) and +60°C (+140°F).
