Icom IC-F8101 HF Transceiver Instruction Manual

The IC-F8101 is a HF transceiver produced by Icom. It has ALE/Sel-call capabilities, digital signal processor (DSP) allows flexible filter selection, full-dot matrix LCD for a variety of information.

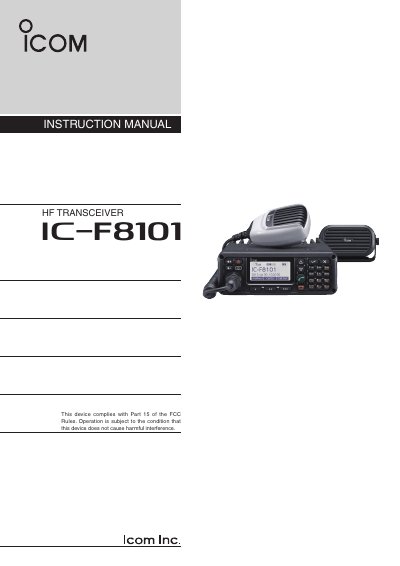

Icom IC-F8101 HF Transceiver Instruction Manual - cover page
Brand
ICOM
Document type
User Manual
Language
English
Pages
88
File format
PDF
File size
4.3 MB
Published
15 October, 2023
Updated
15 October, 2023
MD5 checksum
5AD980ADDAB91417D77CCC19125FBD88

About this manual

The Icom IC-F8101 is an HF transceiver designed for occupational use only. It features Automatic Link Establishment (ALE), a Digital Signal Processor (DSP) for flexible filter selection, and a full-dot matrix LCD display. The manual provides safety guidelines regarding RF exposure and electromagnetic interference.

What's inside

  • Panel Description
  • Basic Operation
  • Receive and Transmit
  • Selcall/ALE Operation
  • Menu Screen
  • Connection and Installation
  • Specifications

Frequently asked questions

What is the IC-F8101 designed for?

The IC-F8101 is an HF transceiver designed for occupational use only during employment by individuals aware of RF hazards.

What is the maximum duty cycle for transmitting?

You must not transmit for more than 50% of the total radio use time to comply with FCC and IC RF exposure requirements.

How far must people be from the antenna during transmission?

People outside the vehicle must be at least 160 centimeters away from the properly installed antenna while transmitting.
