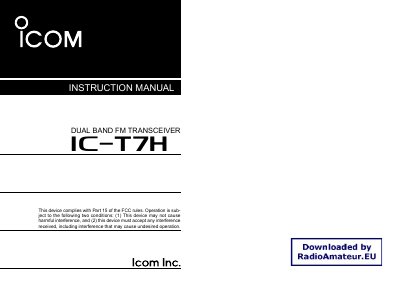

This is the instruction manual of iT7H dual-band FM transceiver. It introduces the basic usage and precautions of the transceiver.
The Icom IC-T7H is a dual-band FM transceiver designed for amateur radio use. This instruction manual covers essential safety precautions, unpacking procedures, and detailed explanations of all switches, controls, and connectors on the front panel.
The guide explains basic operations such as powering the unit, setting frequencies, selecting memory channels, and performing receive/transmit functions. It also details advanced features including repeater operation, DTMF memory, scan functions, subaudible tone settings, and initial setup modes.
You must never connect the transceiver to a power source of more than 16 V DC, as doing so will damage the device.
You should avoid using or placing the unit in areas with temperatures below -10°C (+14°F) or above +60°C (+140°F).
The transceiver performs best if the microphone is 5 to 10 cm (2 to 4 in) away from the lips.
