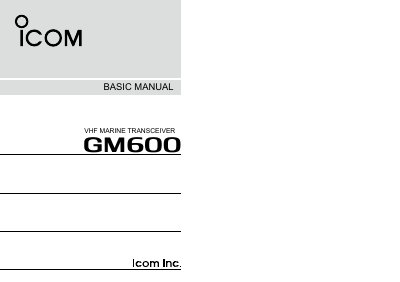

This is the basic manual for the Icom GM600 VHF marine transceiver. It provides detailed information on the functions, operating methods, and precautions for the transceiver.
The document serves as a basic guide for the Icom GM600 VHF Marine Transceiver. It outlines essential operating rules regarding radio licenses and call priorities, specifically emphasizing that safety and distress calls take precedence over all others.
Key sections include detailed instructions on using Channel 16 for voice distress calls and utilizing Digital Selective Calling (DSC) on Channel 70 for automated alerts. The manual also provides critical installation notes regarding electromagnetic field exposure limits and power supply connections via the PS-310 accessory.
| Maximum RF Power | 25 watts |
|---|---|
| Antenna Installation Height | at least 1.76 meters |
| Recommended Antenna Gain | 3 dB |
| Operating Temperature Range | -15°C to +55°C |
The maximum RF power available from this device is 25 watts.
The installation height for the antenna should be at least 1.76 meters above any accessible position.
It is recommended that an antenna of a maximum gain of 3 dB is used.
