KS101B/KS103/KS103S is a distance sensor with real-time temperature compensation. It has features like high accuracy, 500Hz detection frequency, and adjustable filtering and noise reduction technology. It supports communication with the host via I2C/serial interface and has 20 programmable addresses. Additionally, it offers fast temperature detection, automatic sleep mode, and industrial-grade configuration.

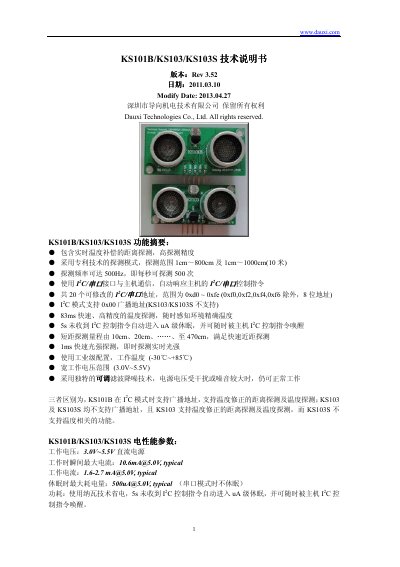

This document is the technical manual for the Dauxi KS101B, KS103, and KS103S distance sensors. It details the product's features, including real-time temperature compensation, a detection range of 1cm to 1000cm, and a detection frequency of up to 500Hz. The sensors support communication via I2C or TTL serial interfaces. This manual is written in Chinese.
| Operating Voltage | 3.0V~5.5V DC |
|---|---|
| Max Instantaneous Current | [email protected] |
| Typical Working Current | 1.6-2.7 [email protected] |
| Max Standby Current | [email protected] |
| Detection Frequency | 500Hz |
| Detection Range | 1cm～800cm & 1cm～1000cm |
| Operating Temperature | -30 ℃~+85 ℃ |
Connect the MODE pin to VCC for I2C mode, or connect it to 0V (Ground) before power-on for TTL Serial mode.
The default I2C address is 0xe8.
The green LED flashes in binary; fast flashes represent '1' and slow flashes represent '0'.
