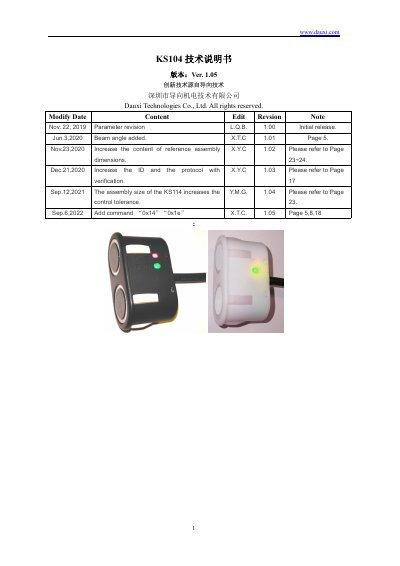

The Dauxi KS104 sensor technical manual provides specifications, wiring, command set, and configuration details for proper use.
The KS104 is an IP65‑rated, split‑design distance sensor with configurable beam angles of 50° or 60°. It supports I2C, TTL, RS‑485, MODBUS‑RTU and CAN interfaces, and operates from 3 V to 5.5 V (optional 9‑24 V) in temperatures from –30 °C to +85 °C.
This manual covers functional summaries, electrical parameters, wiring diagrams, address configuration procedures, command tables, timing diagrams, sleep‑mode settings, and example code for microcontroller integration. This manual is written in Chinese.
| Supply Voltage | 3‑5.5 V DC (5 V recommended, 9‑24 V optional) |
|---|---|
| Operating Temperature | -30 °C to +85 °C |
| Detection Range | 1 cm to 3 m (common 1 cm‑1.5 m) |
| Maximum Startup Current | 10 mA @ 5 V (10 s) |
The default I2C address is 0xE8 (7‑bit address 0x74).
Up to 20 I2C/TTL/485 addresses can be set, ranging from 0xD0 to 0xFE excluding 0xF0, 0xF2, 0xF4, 0xF6.
It operates from –30 °C to +85 °C.
The sensor can detect distances from 1 cm up to 3 m, with a typical range of 1 cm‑1.5 m.
