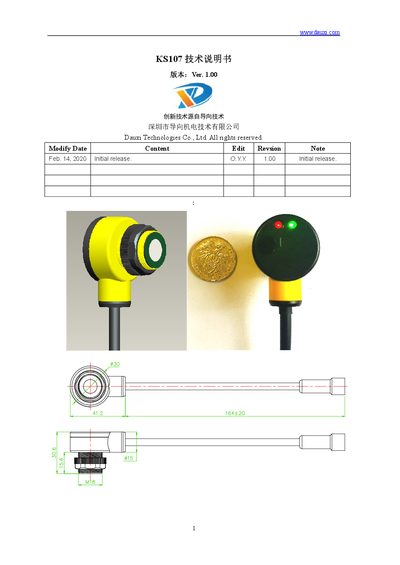

Dauxi KS107 Sensor Technical Manual

This manual covers the Dauxi KS107 sensor, including specifications, wiring diagrams, communication protocols, and configuration commands for I2C, TTL, and…

Brand: Dauxi
Category: sensor
Document type: User Manual
Language: Chinese
Pages: 31
File format: PDF
File size: 1.6 MB
Published: 12 October, 2026
Updated: 12 October, 2026
MD5 checksum: 9F334FB6FA490CA8333B68D9C47E8E2C
PDF: Dauxi KS107 Sensor Technical Manual PDF

About this manual

The Dauxi KS107 is an integrated transmit and receive sensor with a narrow 15° beam angle and a detection range of 7cm to 150cm. It features high precision of 1mm and operates on a 12V to 24V DC power supply. The device supports multiple communication interfaces, including default RS485, optional I2C, TTL, and custom MODBUS RTU configurations. This manual is written in Chinese.

What's inside

KS107 Function Summary
Electrical Parameters
Wiring Instructions
TTL and RS485 Modes
Work Flow and Initialization
Register Commands
Detection Modes
Noise Reduction Levels

Specifications

Beam Angle	15°
Detection Range	7cm-150cm
Operating Voltage	12V~24V DC
Weight	35g
Operating Temperature	-10℃~+70℃
I2C Communication Rate	50~100kbit/s
Default Serial Baud Rate	9600bps

Frequently asked questions

What is the default interface of the KS107?

The default factory setting is the KS107-485 interface.

Can the KS107 address be modified?

Yes, there are 20 modifiable addresses ranging from 0xd0 to 0xfe.

What happens if no I2C control command is received for 5 seconds?

The sensor automatically enters a uA-level sleep mode and can be woken up by a host I2C control command.

How many KS107 units can be connected on an RS485 bus?

Up to 20 units can be connected on an RS485 serial bus.
