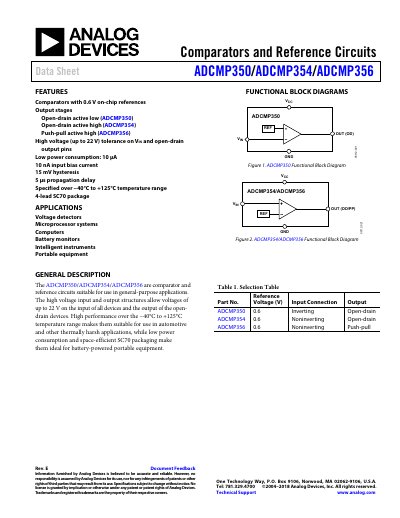

This document describes the features and characteristics of ADCMP350/ADCMP354/ADCMP356 comparators and reference circuits, including 0.6V on-chip reference voltage, output stages, high voltage tolerance, low power consumption, etc.
The document describes the ADCMP350, ADCMP354, and ADCMP356 as comparators with on-chip 0.6 V references suitable for voltage detection in microprocessor systems, computers, and battery monitors. These devices feature high voltage tolerance up to 22 V and low power consumption.
| Supply Operating Voltage Range | 2.25 V to 5.5 V |
|---|---|
| Input Voltage Range | 0 V to 22 V |
| Supply Current (Typ) | 10 µA |
| Input Bias Current | 10 nA |
| Propagation Delay (Typ) | 5 µs |
| Operating Temperature Range | -40°C to +125°C |
The devices include a built-in on-chip reference of 0.6 V.
The input and open-drain output pins can tolerate voltages up to 22 V.
The ADCMP354 model provides an open-drain active high output.
