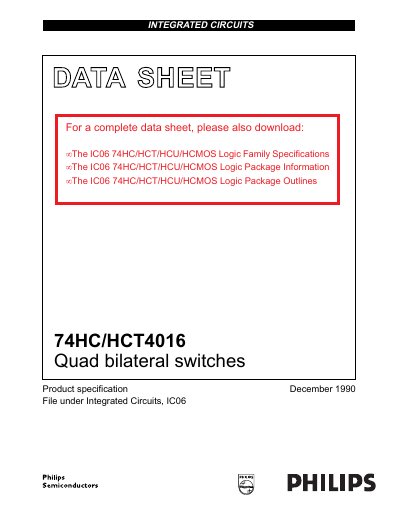

Philips 74HC/HCT4016 Quad Bilateral Switches Datasheet

This data sheet introduces the features and characteristics of the 74HC/HCT4016 quad bilateral switches.

Brand: Philips
Category: INTEGRATED CIRCUITS
Document type: Datasheet
Language: English
Pages: 14
File format: PDF
File size: 103 KB
Published: 20 October, 2022
Updated: 01 October, 2023
Model: 74HC
MD5 checksum: D406844BDEB8AF34F8F638906220F0F4
PDF: Philips 74HC/HCT4016 Quad Bilateral Switches Datasheet PDF

About this manual

The Philips 74HC/HCT4016 are high-speed Si-gate CMOS devices containing four independent analog switches (transmission gates). Each switch has two input/output terminals and an active HIGH enable input. When enabled, a low bidirectional path is established between the terminals; when disabled, the output is in a high-impedance state.

What's inside

Features
General Description
Quick Reference Data
Ordering Information
Pin Description
Functional Table
Applications
Ratings
DC Characteristics
AC Characteristics

Specifications

ON resistance (typical) at VCC=4.5V	160Ω
ON resistance (typical) at VCC=9.0V	80Ω
Number of independent switches	Four
Supply voltage range (HC)	2.0 to 10.0 V
Maximum switch current	25 mA

Frequently asked questions

What are the applications of the 74HC/HCT4016?

The device is suitable for signal gating, modulation, demodulation, and chopper applications.

What is the typical ON resistance of the switch at 4.5 V?

The typical ON resistance is 160Ω at 4.5 V.

Download PDF (103 KB)
