The ADP5062 is a charger that fully complies with USB 3.0 and USB Battery Charging Specification 1.2. It features a programmable digital control input, AC charger current up to 2.1A in LDO mode, input voltage range from 4.0V to 6.7V, built-in current detection and limiting, as well as thermal regulation to prevent overheating. The product is suitable for applications such as digital cameras, camcorders, portable devices, audio devices, GPS devices, portable medical devices, and mobile phones.

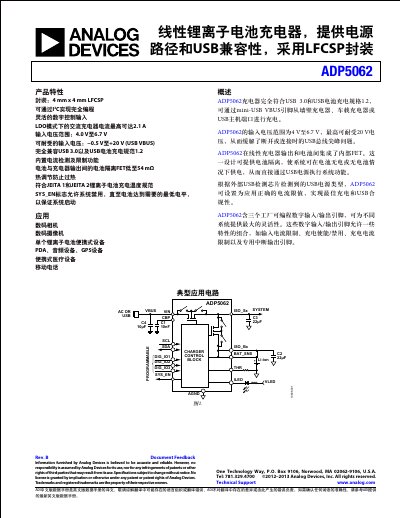

The ADP5062 is a linear lithium-ion battery charger designed to comply with USB 3.0 and the USB Battery Charging Specification 1.2. It charges via the mini-USB VBUS pin from wall chargers, vehicle chargers, or USB host ports, featuring an input voltage range of 4.0 V to 6.7 V. This manual is written in Chinese.
| Input Voltage Range (VBUS) | 4.0 V to 6.7 V |
|---|---|
| Maximum Input Voltage Tolerance | -0.5 V to +20 V |
| Fast Charge Current (Typical) | 750 mA |
| Maximum Output Current (LDO Mode) | 2.1 A |
| Battery Isolation FET RDS(ON) | 54 mΩ (Typical) |
| Package Type | 4 mm x 4 mm LFCSP |
It is fully compatible with USB 3.0 and the USB Battery Charging Specification 1.2.
The device supports full programming via an I2C interface.
