This document introduces the features and characteristics of Oracle Orik 12V Gel Series Batteries, including tight assembly technology, maintenance-free with no water addition required, corrosion-resistant plate grid alloy, high-purity raw materials, gas recombination technology, and safe sealing. It is widely used in electrical equipment, medical devices, computer uninterruptible power supplies, and power substations. The batteries have excellent high-rate discharge performance, long service life, and easy installation and use.

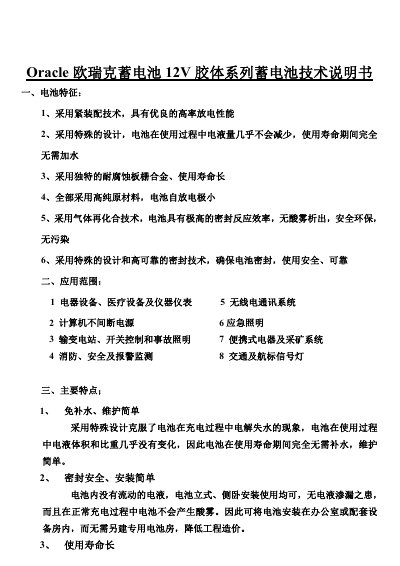

This document is a technical manual for the Oracle 12V Gel Series battery. It details the battery's features, such as maintenance-free operation and long life, and lists its application ranges including UPS systems, emergency lighting, and communication equipment. The manual provides specific technical data, including dimensions, weights, and performance curves for various capacities ranging from 10Ah to 200Ah. This manual is written in Chinese.
| Operating Temperature Range | -40°C~60°C |
|---|---|
| Float Life | 5~7 years |
| Float Charging Voltage | 13.65±0.1V/unit |
| Charging Voltage | 14.10±0.1V/unit |
| Max Charging Current | 0.25C10A |
| Float Charging Current Limit | ≤0.01C10A |
| Discharge Termination Voltage | 10.5V/unit |
| Min Discharge Termination Voltage | 9.6V/unit |
Yes, the battery can be installed vertically or horizontally as it has no flowing electrolyte and is sealed safely.
The room temperature should be kept between 15°C and 25°C to ensure a longer service life.
No, batteries from different manufacturers or with significantly different ages should not be mixed in a group.
