Oracle ZFS storage devices ZS3-2 and ZS4-4 provide high‑performance, multi‑protocol enterprise storage with integrated software and hardware features.
The Oracle ZFS storage family combines a multi‑threaded SMP operating system with enterprise‑grade hardware to deliver high throughput and efficiency for virtualized and cloud workloads. Two controller models are offered – the mid‑range ZS3‑2 and the high‑end ZS4‑4 – both using the same intelligent OS and SAS‑2 disk enclosures but with different processor and cache configurations.

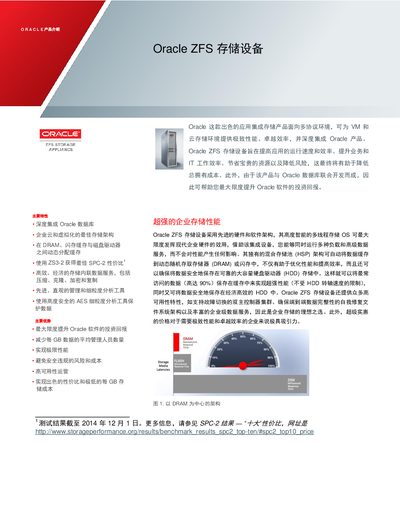

Key features include deep integration with Oracle Database, a hybrid storage pool that caches up to 90 % of I/O in DRAM or flash, advanced analytics (ZS Analytics), and a full set of data services such as compression, cloning, encryption and replication. The systems support a wide range of block and file protocols, multiple network interfaces, and optional high‑availability clustering. This manual is written in Chinese.
| Processor (ZS3‑2) | 4‑core 2.1 GHz Intel Xeon |
|---|---|
| Processor (ZS4‑4) | 8‑core 2.8 GHz Intel Xeon |
| DRAM Cache | 512 GB or 1 TB |
| Typical Power (ZS3‑2 controller) | 379 W (max 889 W) |
| Physical Height (ZS4‑4 controller) | 129.85 mm (3 RU) |
It supports file protocols NFS v2‑v4, SMB1/2/2.1, HTTP, WebDAV, FTP/SFTP/FTPS and block protocols iSCSI, Fibre Channel, iSER, SRP, IP over InfiniBand, and RDMA over InfiniBand.
The ZS3‑2 controller consumes about 379 W under typical load, with a maximum of 889 W.
