E640 is a new generation high-precision static measurement system developed by Hezhong Sizhuang. It features an integrated design that combines GPS antenna, GPS receiver, lithium battery, and data storage. The system has excellent performance in tracking multiple GPS satellites, and it is waterproof, dustproof, and shockproof. It is easy to operate and has a large storage capacity. It can be widely used in control measurement, engineering measurement, GIS data collection, cadastral survey, and area measurement.
The UniStrong E640 is a high‑precision static measurement system that integrates a GPS antenna, receiver, lithium‑battery and flash storage in a sealed, waterproof, dust‑proof and shock‑proof housing. It is designed for control surveying, engineering surveying, GIS data collection and boundary measurement.

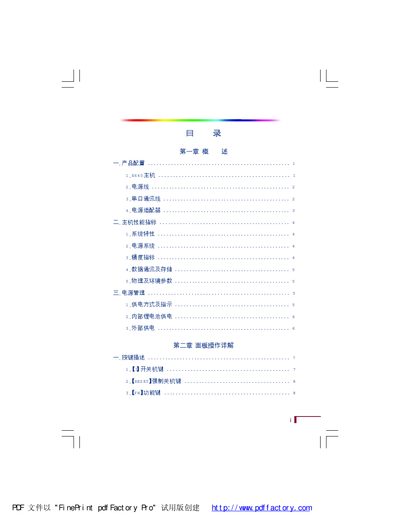

The manual is organized into chapters covering product overview, panel operation, device setup, field data processing, engineering case studies and safety precautions, with detailed descriptions of interfaces, power options, button functions, accuracy specifications and data management procedures. This manual is written in Chinese.
| Power consumption (idle) | <0.6 W |
|---|---|
| Battery capacity | 4200 mAh |
| Operating time (battery) | >30 h |
| Charging time | <5 h |
| Horizontal accuracy (static) | ±5 mm + 1 ppm |
| Elevation accuracy (static) | ±10 mm + 1 ppm |
| Dimensions (L×W×H) | 161 × 152 × 106 mm |
| Operating temperature range | -30 °C to 70 °C |
| Ingress protection | IPX67 |
The E640 can be powered either by its internal lithium‑battery or by an external 12 V DC supply, with automatic switching between them.
A fully charged internal battery allows the E640 to operate continuously for more than 30 hours.
In static mode the system provides horizontal accuracy of ±5 mm + 1 ppm and elevation accuracy of ±10 mm + 1 ppm.
