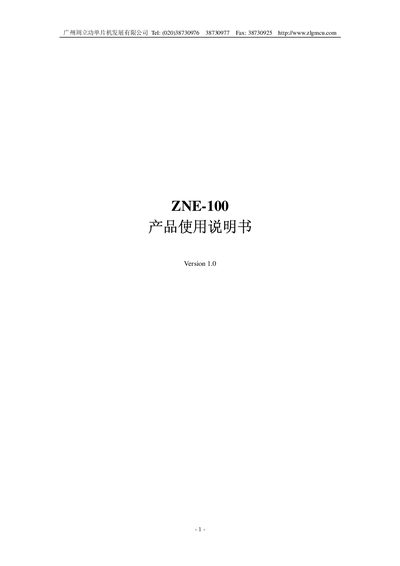

ZNE-100 is a network module developed by Zhouligong company. It integrates TCP/IP protocol stack. Users can easily complete the network function of embedded devices, save manpower and material resources and development time, and make products more quickly enter the market and enhance their competitiveness.
The ZNE-100 is an embedded network module developed by ZLG that integrates a TCP/IP stack, supporting Ethernet, TCP/UDP server modes, and a Real COM driver. It offers a compact size, low power consumption, and a variety of serial configurations for easy integration into embedded devices.
The manual covers the module’s hardware layout, pin assignments, evaluation board usage, hardware connection methods, software configuration steps, default network settings, speed test results, and technical support information, including repair procedures and a product issue report form. This manual is written in Chinese.
| Size | 44 × 31.5 mm |
|---|---|
| CPU | 32‑bit ARM7 |
| RAM | 16 KB |
| Flash | 128 KB |
| Ethernet Interface | 10 Mbit/s |
| Electrical Isolation | 1.5 kV |
| Serial Baud Rate | 300 ~ 115200 bps |
| Maximum Current Consumption | 38 mA |
| Operating Temperature | 0 ~ 65 °C |
| Storage Temperature | -25 ~ 85 °C |
| Input Voltage | 5 V DC |
The module is preset with the IP address 192.168.0.178.
It has two rows of pins: one row with 12 pins and another with 11 pins, plus three holes on the top for factory reset and firmware upgrade.
The serial interface supports baud rates up to 115200 bps.
Pull the nRST pin low for more than 20 µs; the low level triggers a reset.
