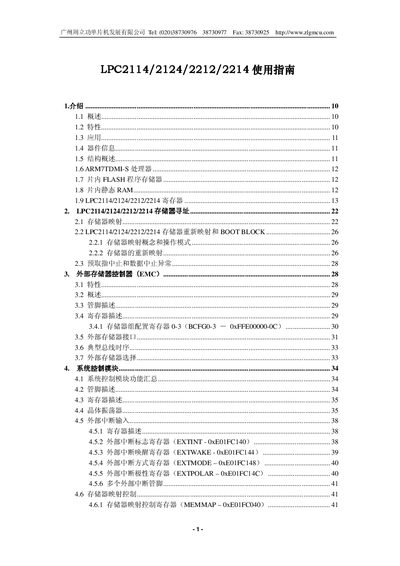

This document describes the features and characteristics of the LPC2114/2124/2212/2214 series products produced by Guangzhou Zhouligong Microcontroller Development Co., Ltd.
The manual covers the architecture and operation of the LPC2114/2124/2212/2214 ARM7TDMI‑based microcontrollers, including memory map, peripheral registers, and programming guidelines. It includes detailed register tables for modules such as PLL, power control, VIC, GPIO, UART, timers, PWM, ADC, I2C, SPI and RealMonitor.
Each chapter explains the function of the registers, configuration steps, and usage notes, allowing developers to integrate the devices into their embedded applications and perform debugging with the provided tools. This manual is written in Chinese.
| Flash memory size | 12 KB |
|---|---|
| SRAM size | 12 KB |
Use the PLL control register (PLLCON) at address 0xE01FC080 to set the PLL parameters.
Write the desired mapping value to the MEMMAP register at address 0xE01FC040.
