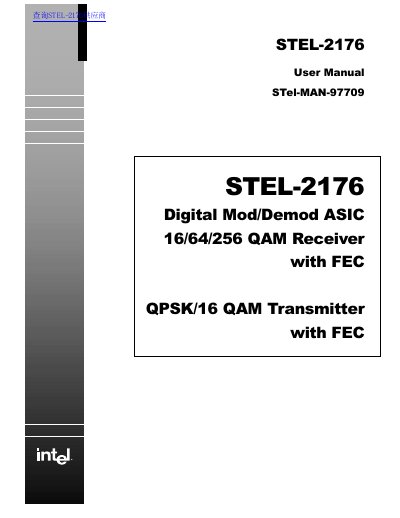

This document is the STEL-2176 User Manual, which provides product information for the STEL-2176 and is intended to help users understand the advantages of integrating both the receiver and transmitter functions as an integral portion of their cable modem chip.
This user manual provides product information for the STEL-2176 Digital Mod/Demod ASIC, designed to assist customers in integrating both receiver and transmitter functions as an integral portion of their cable modem chip. The document details the supported modes of operation, including downstream QAM and upstream BPSK/QPSK/16 QAM with Forward Error Correction (FEC).
| Product Type | Digital Mod/Demod ASIC |
|---|---|
| Downstream Modes | 16/64/256 QAM Receiver with FEC |
| Upstream Modes | QPSK/16 QAM Transmitter with FEC |
| Package Type | 208-PIN SQFP |
The STEL-2176 is a Digital Mod/Demod ASIC.
The device supports 16, 64, and 256 QAM receiver modes with FEC.
Supported upstream modes include STD BPSK, QPSK, and 16 QAM.
