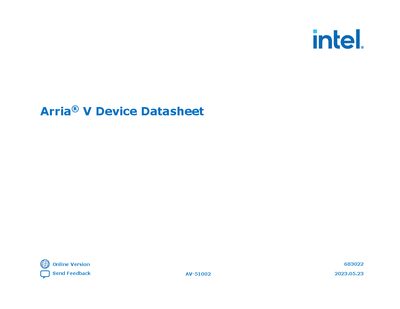

Technical datasheet for Intel Arria V FPGA devices covering GX, GT, SX, ST, and GZ variants with electrical, switching, configuration, and I/O timing…
This datasheet describes the electrical characteristics, switching characteristics, configuration specifications, and I/O timing for Intel Arria V FPGA devices. It includes data for commercial and industrial grades of the GX, GT, SX, ST, and GZ families.
The document is organized into sections such as Electrical Characteristics, Switching Characteristics, Configuration Specifications, I/O Timing, Glossary, and Revision History, providing detailed tables of voltage limits, temperature ranges, and performance parameters for each device grade.
| VCC Core voltage power supply (absolute max) | Min -0.50 V, Max 1.43 V |
|---|---|
| VCCIO I/O power supply (absolute max) | Min -0.50 V, Max 3.90 V |
| Operating junction temperature (commercial grade) | 0 °C to 85 °C |
The VCC core voltage may be as low as –0.50 V and as high as 1.43 V.
Commercial devices operate from 0 °C up to 85 °C.
The I/O power supply (VCCIO) may be up to 3.90 V.
