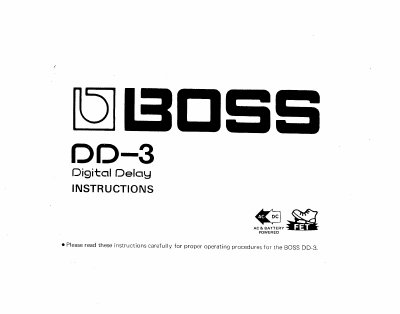

This manual provides operating instructions for the BOSS DD-3, a compact digital delay pedal. It details the features, including a pedal switch for Effect ON/OFF and Hold ON/OFF, and a two-output system for Mono or Stereo selection. The document explains how to connect the unit to instruments and amplifiers using the Input, Direct Output, and Main Output jacks.
| Delay Time | 12.5ms to 800ms |
|---|---|
| Hold Time | 200ms to 800ms |
| Frequency Response | 40Hz to 7kHz |
| Power | 9V DC Dry Battery or AC Adaptor |
| Current Draw | 45mA to 65mA |
| Dimensions | 70(W)x55(H)x125(D)mm |
| Weight | 450g/1 Ib. |
The battery lasts for 30 minutes to 2 hours with manganese batteries or 5 to 10 hours with alkaline batteries.
You must use the BOSS PSA-series (PSA-120, 220, or 240) because the unit consumes more current than usual compact effect units.
The Check Indicator confirms if the Effect is ON or OFF and serves as a battery check indicator.
