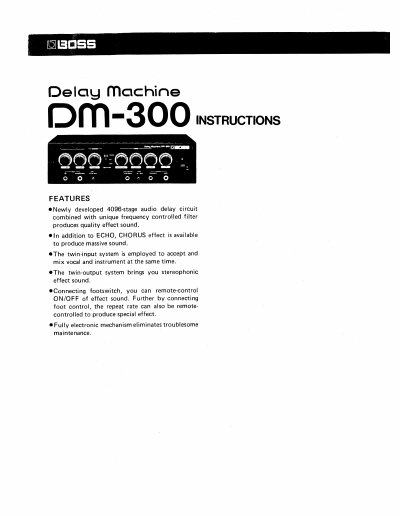

This manual provides instructions for the BOSS DM-300, a stereo effect processor featuring a 4096-stage audio delay circuit and a frequency-controlled filter. It supports both echo and chorus effects and includes a twin-input system for mixing vocals and instruments simultaneously.
| Delay Time (Chorus) | 22mS — 44mS |
|---|---|
| Delay Time (Echo) | 40mS — 600mS |
| Frequency Response | 10KHz — 1.5KHz |
| Power Consumption | 6w |
| Dimensions | 386(W} x 123(H) x 206(D)mm |
| Weight | 3.7kg, 8.2 Ibs |
The impedance for the Microphone input is 4.7KΩ at -60dB sensitivity.
The impedance is 4.7KΩ at -50dB and 470Ω at -35dB and -20dB.
Yes, by connecting a guitar volume pedal (FV-100) or a synthesizer CV output to the Repeat Rate Control jack.
