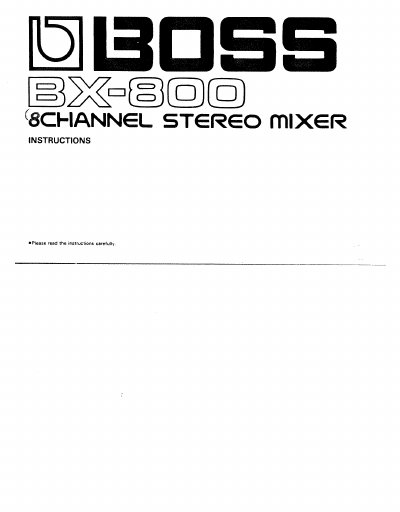

This document provides instructions for the Roland BX-800, an 8-channel stereo mixer. It details the function of various controls including input jacks, gain, treble, bass, and volume controls. The guide explains how to connect microphones, instruments, and effects units to the device.
| Input Level (Rated) | -50dBm to +4dBm |
|---|---|
| Output Level (Rated) | +4dBm |
| Frequency Response | 20Hz to 40kHz |
| AC Power | 17/220/240V AC 50/60Hz |
| Dimensions | 325(W) x 76(H) x 236(D) mm |
| Weight | 2.2kg/4lb. 1402. |
The rated output level is +4dBm.
The frequency response ranges from 20Hz to 40kHz.
The BX-800 has 8 input channels.
