The AN8001FHK is a 64-gradation LCD grading voltage generation IC with a high-precision reference voltage source (1.23V), a wide dynamic range of buffer amplifiers, and a large COM-amplifier drive current (±100 mA (max.)).

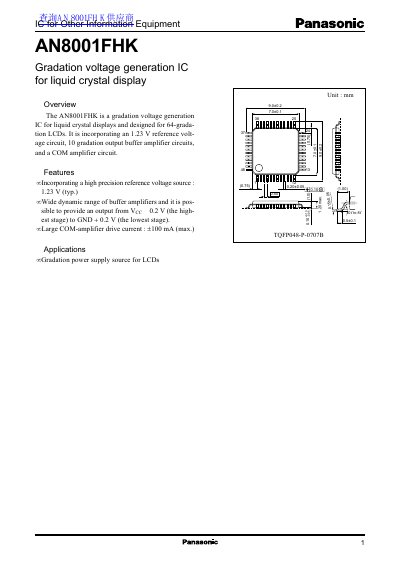

The Panasonic AN8001FHK is a gradation voltage generation IC specifically designed for 64-gradation liquid crystal displays (LCDs). It integrates a high-precision 1.23 V reference voltage circuit, ten gradation output buffer amplifier circuits, and a COM amplifier circuit to provide stable voltage generation for LCD panels.
Key features include a wide dynamic range for buffer amplifiers, allowing output from VCC - 0.2 V to GND + 0.2 V, and a large COM-amplifier drive current of up to 100 mA. The device is housed in a TQFP048 package and operates within an ambient temperature range of 0 to +70 °C.
| Supply voltage | 7 to 14 V |
|---|---|
| Reference voltage | 1.23 V (typ.) |
| COM amplifier drive current | 100 mA (max.) |
| Operating ambient temperature | 0 to +70 °C |
| Storage temperature | -55 to +150 °C |
| Package type | TQFP048-P-0707B |
It is designed as a gradation power supply source for liquid crystal displays (LCDs).
The IC incorporates a high precision reference voltage source of 1.23 V.
The device provides a large COM-amplifier drive current of 100 mA maximum.
