This manual introduces the features and characteristics of the Futaba digital proportional radio control system

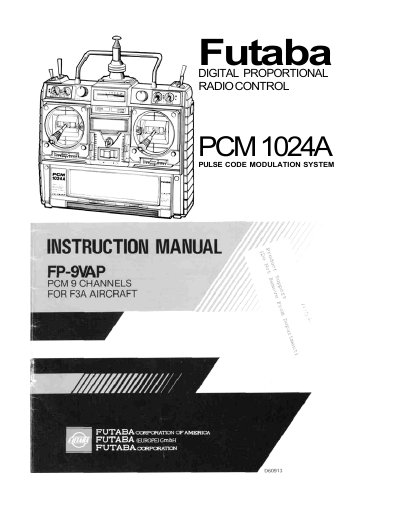

This manual covers the Futaba PCM 1024A digital proportional radio control set, designed for serious R/C hobbyists. It details the features of the FP-T9VAP transmitter and FP-R129DP receiver, highlighting capabilities such as 1024 channel resolution, noise resistance, and programmable mixing functions suitable for FAI Precision Acrobatic competition.
The document provides comprehensive instructions on system programming, including dual rates, exponential control, snap rolls, and various mixing circuits. It also explains the use of accessories like the DSC cord and Nicd battery charging procedures.
| Channel Resolution | 1024 Channel |
|---|---|
| Operating System | Two-stick, 9 Channel |
| Transmitting Frequency | 72MHz, 53MHz, 50MHz |
| Power Requirement (TX) | 9.6 volt (8/500mAH) internal Nicd battery |
| Receiving Range (Ground) | 500m (1,500 ft.) |
The system uses a new 1024 PCM encoder format that provides unexcelled servo resolution and response time.
Yes, PCM or standard PPM operation can be selected to allow operation of standard FM receivers on the same frequency.
The Power Off function turns off the transmitter power automatically if the controls are not operated for 30 minutes.
