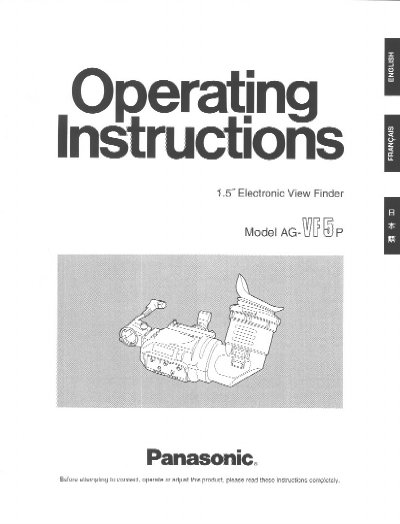

This manual provides operating instructions for the Panasonic AG-U5 Electronic View Finder. It details safety precautions, features such as the high-resolution CRT and adjustable position, and explains how to use controls like Peaking, Contrast, Brightness, Tally, and Zebra switches.
The guide covers step-by-step procedures for mounting and detaching the viewfinder from a compatible camera, adjusting the crosswise position and diopter, cleaning the eyepiece, and attaching an optional microphone. It also lists technical specifications including power requirements and image system details.
| Power supply | DC 39V, 12V (supplied by camera) |
|---|---|
| Power consumption | 2 W |
| Picture tube type | 5-inch high-resolution monochrome picture tube |
The TALLY switch controls the front tally lamp, turning it on or off to indicate recording status.
