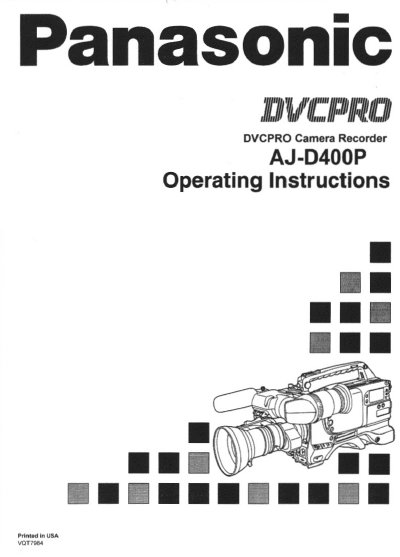

This document provides operating instructions for the Panasonic AJ-D400P DVCPRO Camera Recorder. It details the technical specifications of both the camera section (featuring a 1/2-inch RGB 3-CCD system) and the VTR section, including video and audio performance metrics.
| Pick-up devices | 1/2-inch on-chip FIT type of CCD |
|---|---|
| System | RGB 3-CCD system |
| Picture elements | 480,000 pixel |
| Lens mount | 1/2" Bayonet type |
| Power supply voltage | DC 12V |
| Continuous operating time | Approx. 90 min. |
The approximate recording/playback time is 66 minutes using the AJ-P66MP.
Set the AUDIO SELECT CH1/CH2 switch to AUTO and the AUDIO IN CH1/CH2 switch to FRONT [MIC].
