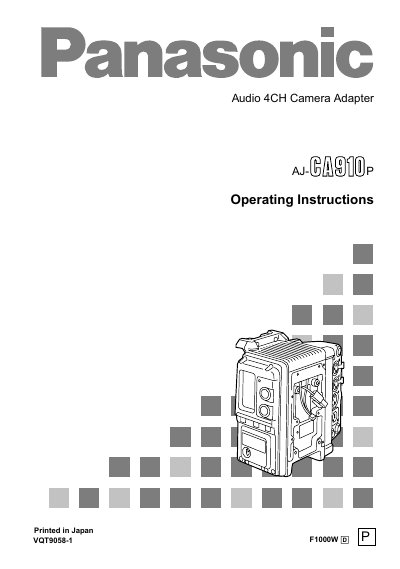

This document provides operating instructions for the Audio 4CH Camera Adapter AJ- P, including safety information and usage precautions.
This document provides operating instructions for the Panasonic AJCA910 Audio 4CH Camera Adapter. It details the supported camera recorder models, technical specifications such as power supply and audio sampling, and describes the functions of various controls and connectors including audio level meters and input selectors.
The guide also includes safety cautions regarding electric shock and fire hazards, battery recycling information, and step-by-step instructions for attaching the adapter to compatible Panasonic camera units. It covers the connection of microphones and audio components via XLR connectors and the configuration of phantom power.
| Power supply | DC 12 V (11 V-17 V) |
|---|---|
| Power consumption | 7 W (including the optional board) |
| Ambient operating temperature | 0°C to +40°C |
| Storage temperature | -20°C to +60°C |
| Ambient operating humidity | Less than 85% (relative humidity) |
| Audio sampling frequency | 48 kHz (synchronized with video) |
| Audio quantizing | 16 bits |
The supported models are AJ-D910WA, AJ-D900W, AJ-DQ00WA, AJ-PD900W, and AJ-PD900WA.
Use the MONITOR SELECT switch to choose between CH3, CH4, ST/MIX, or Stereo.
These switches turn the phantom microphone power (+48 V) on or off.
Do not dispose of the nickel cadmium battery in municipal waste; call 1-800-8-BATTERY for recycling information.
