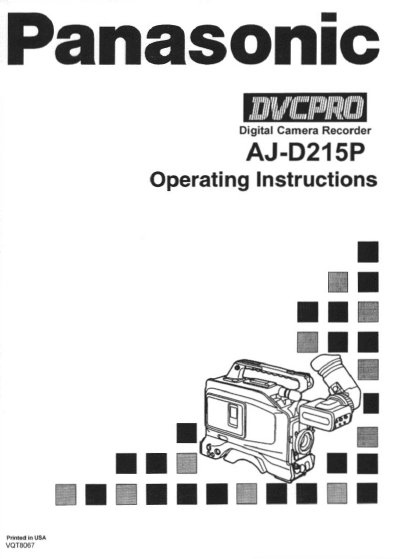

This document provides operating instructions for the Panasonic AJ-D215P Digital Camera Recorder. It includes essential safety warnings regarding moisture, serviceability, and lithium battery replacement to prevent shock or explosion hazards.
The manual details technical specifications for the camera unit, viewfinder, and VTR components, including power requirements, image sensor resolution, recording time, and connector types. It also outlines general guidelines for servicing, such as leakage current checks and handling electrostatically sensitive devices.
| Power supply | DC12 V (10.5V to 17.0V) |
|---|---|
| Image sensor | 1/3" IT-type CCD with on-chip lens x3 |
| Pixels | 542 (H) x 492 (V) |
| Horizontal resolution | Approx. 500 lines (center) |
| Recording/playback time | Approx. 184 min. |
| Audio sampling frequency | 48 kHz |
No, there are no user-serviceable parts inside; refer servicing to qualified personnel.
The lithium battery must only be replaced by qualified personnel or your local Panasonic supplier.
The unit should operate between 32°F and 104°F (0°C to 40°C).
