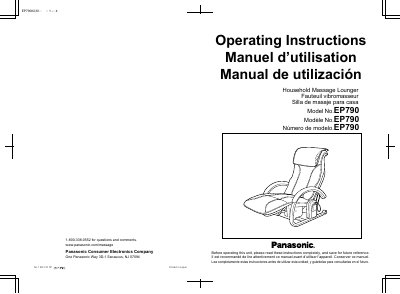

This manual provides operating instructions for the Panasonic EP790 Household Massage Lounger. It details important safety precautions, including warnings for pregnant women and users with specific health conditions, and instructions on proper grounding and usage. The document explains how to operate the controller to start and stop massage actions, select programmed or manual massage modes, and adjust reclining angles and legrest positions.
| Power source | 120 V AC, 60 Hz |
|---|---|
| Kneading speed | Approx. 28 times/min. |
| Tapping speed | Approx. 500 times/min. (per side) |
| Rolling massage speed | Approx. 1 cycle every 33 sec. |
| Massage width | Shoulder/lower back section : Approx. 2 15/16 in. (75 mm) |
| Massage heads up/down travel | Automatic repetition within approx. 4 12/16 in. (120 mm) range |
| Intensity adjustment | 7 steps |
| Automatic shut-off | Approx. 15 min. |
| Shut-off timer | Approx. 30 min. |
| Maximum user weight | 264 Ibs (120 kg) |
| Reclining angle | Approx. 127° to 170° |
This product should not be used by pregnant women, persons who are ill, or persons with back, neck, shoulder or hip pain without consulting a physician.
To prevent excessive massaging, do not use the massager for more than a total of 15 minutes per session.
The maximum user weight is 264 Ibs (120 kg).
No, do not use this appliance outdoors.
